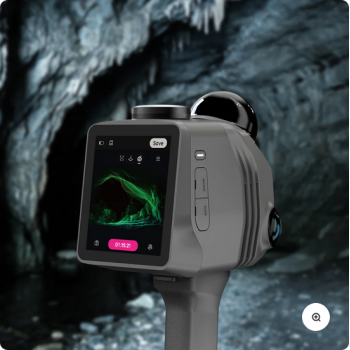

3DMakerpro Raven - Max RTK (2x camera) | LiDAR Scanner
€3,595.00
€3,495.00
VAT included
-€100.00
The 3DMakerpro Raven series comprises a range of professional, handheld LiDAR scanners that bridge the gap between high-end surveying and creative 3D modelling. The Raven's Standard, Max and Max RTK editions deliver precision and efficiency in any lighting condition and feature an integrated 3.9-inch AMOLED touchscreen for real-time monitoring. Whether you need to document large-scale environments or create hyper-realistic digital twins, this versatile tool can be adapted to meet your specific accuracy and visual detail requirements.
It captures 150,000 points per second for rapid data collection.
The integrated 3.9-inch AMOLED display provides real-time visual monitoring.
It provides precise 20 mm accuracy at 10 metres, making it ideal for spatial documentation.
It offers native support for 4K colour point clouds and 3D Gaussian splatting.
The versatile 360° horizontal field of view enables comprehensive environmental scanning.
A swappable 12,000 mAh battery handle provides up to two hours of continuous use.
Last items in stock
Payment
- 30 days return guarantee
- 2 years minimum warranty Â
- Need a customised offer?
- Request Personalised Offer
Professional LiDAR performance at your fingertips
The Raven series redefines the capabilities of handheld LiDAR technology. Utilising a high-performance 905 nm laser, the scanner boasts an impressive scanning range of up to 100 metres, enabling it to capture both tight indoor spaces and expansive outdoor scenes with equal proficiency. With a capture rate of 150,000 points per second, complex environments can be digitised in a fraction of the time required by traditional methods, while maintaining consistent accuracy of 2 cm at a distance of 10 metres.
Tailored Excellence: Standard, Max and Max RTK

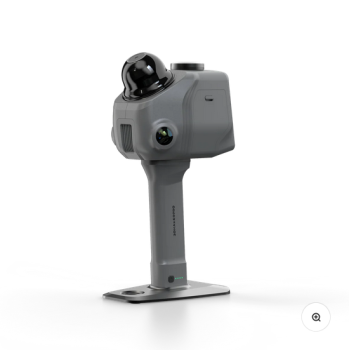

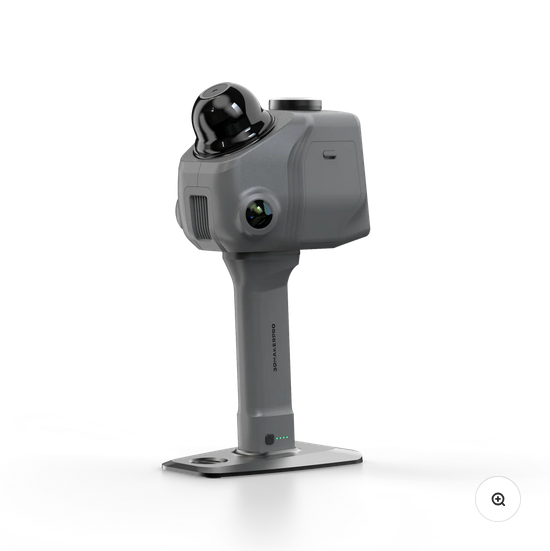

To meet the demands of different industries, the Raven is available in three distinct configurations: While the Standard model provides a robust entry point for geometry and scanning, the Max edition enhances your output with high-fidelity textures via its integrated camera. For those requiring the ultimate in detail, the Max RTK edition includes an external 360° camera for full-immersion colour capture and even higher-resolution 3D Gaussian splatting (PLY) results — perfect for cinematic VR and AR applications.
Seamless standalone workflow

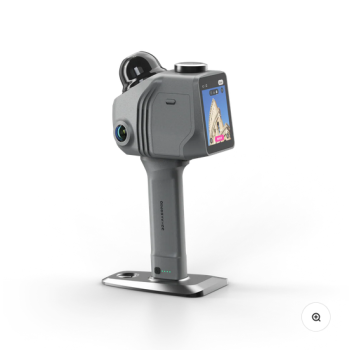

One of the Raven’s most significant advantages is its complete independence. Powered by an 8-core 2.4 GHz processor and with 32 GB of onboard storage, you can perform entire scans without being tethered to a laptop or smartphone. The bright, 700-nit AMOLED touchscreen ensures that you can see exactly what you are capturing, even in direct sunlight. This standalone capability makes the Raven an ideal companion for fieldwork where mobility is paramount.
Designed for the field
Weighing just 1.1 kg, the Raven is built for portability and endurance. Its "Swap & Go" battery system features a detachable 12,000 mAh handle that allows you to quickly switch power sources and continue working on larger projects without interruption. Thanks to its robust build and versatile mounting options — including support for drones — the Raven is a reliable tool for architects, engineers and digital artists who need to capture the world in three dimensions.
