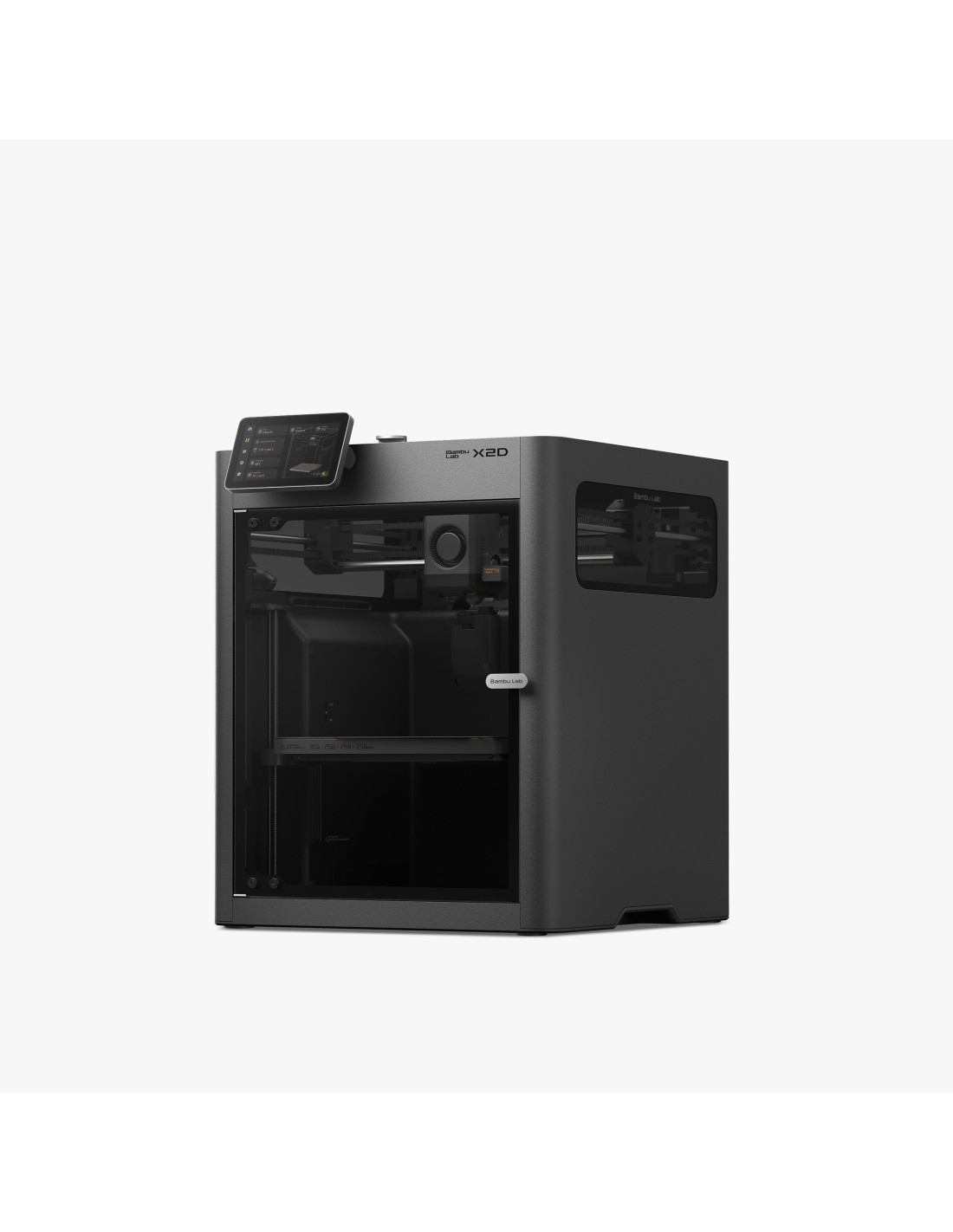

Bambu Lab X2D - 3D Printer

Dual-nozzle system for functional use

The X2D is equipped with a dual extrusion system that has been designed with functionality and reliability in mind. The primary nozzle uses a direct drive setup to provide stable material feeding and precise extrusion control. The secondary Bowden-based system is optimised for support materials, facilitating easier removal and reducing the need for post-processing.

Nozzle switching is handled via a mechanical solution rather than separate motors in the print head. This reduces moving mass and contributes to more stable motion, especially at higher print speeds.

Controlled material handling and calibration

The printer uses Dynamic Flow Calibration to monitor the extrusion process and apply continuous adjustments. The system accounts for variations in materials and components to maintain consistent extrusion.

A permanent magnet synchronous motor (PMSM) continuously measures torque and position, enabling deviations such as increased resistance in the filament path to be detected. When combined with the AMS system, this enables more automated and stable material handling in multi-material printing.

The enclosed build chamber is adapted for different material types and operates in different modes depending on the material. For standard materials, controlled airflow helps to maintain surface quality and detail. For more demanding materials, the chamber can be heated up to 65 °C, while the hotend can reach 300 °C and the heated bed can reach 120 °C.

This makes the system suitable for standard materials such as PLA and PETG, as well as technical materials such as ABS, ASA and nylon.

The build volume is 256 × 256 × 260 mm when using the primary nozzle and 235.5 × 256 × 256 mm when both nozzles are active. This provides flexibility for both prototypes and functional components.

Monitoring and operational stability

The X2D is equipped with multiple sensors that monitor temperature, material flow and system status throughout the entire printing process. This ensures stable operation and reduces the risk of failed prints, particularly during longer jobs.

For applications requiring greater precision, the system can be upgraded with a Vision Encoder to improve motion accuracy.

Designed for continuous use

The printer is designed to operate in workspaces and offices. Its footprint is comparable to that of previous Bambu Lab models, making it easy to integrate into existing setups.

An integrated triple-stage filtration system reduces particles and emissions during operation, and the noise level stays below 50 dB in silent mode.

The system is optimised for the combination of model and support materials. This simplifies support removal and results in a more predictable final outcome.

While it is possible to use two similar materials, the system performs most efficiently when the materials serve clearly defined roles.
